| IP-COM G2210P-8-120W 9 Giagbit ports (8 PoE ports), 1 × 100/1000 Base-X SFP port, power 110W
IP-COM G2210P-8-120W 9 Giagbit ports (8 PoE ports), 1 × 100/1000 Base-X SFP port, power 110W
เพิ่มเมื่อ: 2025-06-02 14:17:14.0
แก้ไขล่าสุด: 2025-06-02 15:06:07.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) IP-COM G2210P-8-120W 9 Giagbit ports (8 PoE ports), 1 × 100/1000 Base-X SFP port, power budget 110W

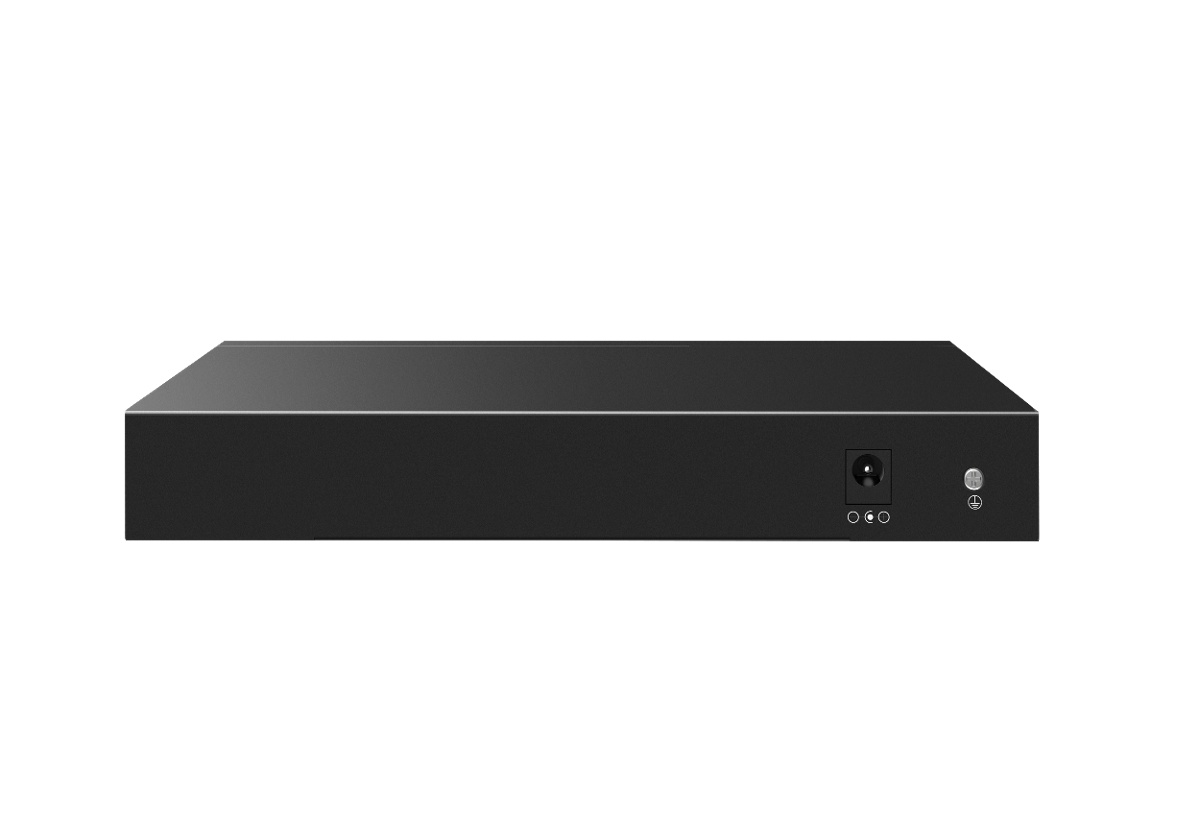

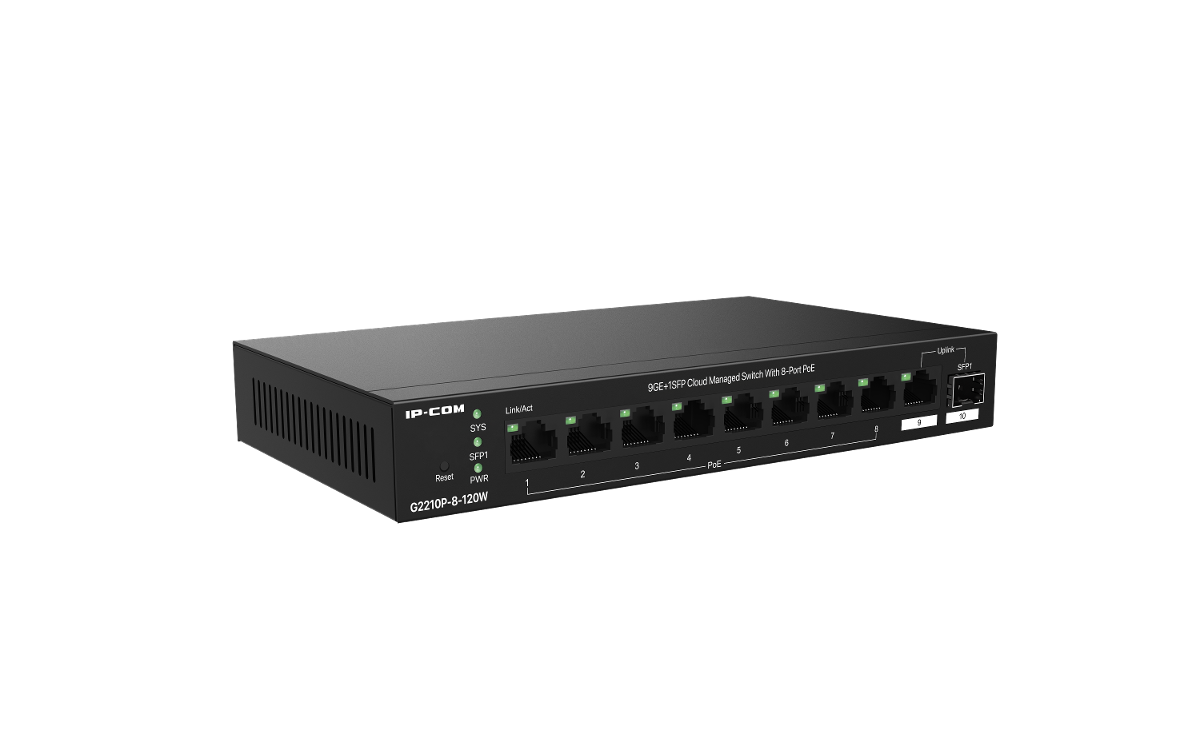

IP-COM G2210P-8-120W
SWITCH (สวิตซ์) IP-COM G2210P-8-120W 9 Giagbit ports (8 PoE ports), 1 × 100/1000 Base-X SFP port, power budget 110W
- Comply with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at,IEEE802.3x,IEEE802.3z,IEEE802.1p,IEEE802.1q standards
- 9*10/100/1000 Base-T Ethernet ports, 1*1000 Base-X SFP optical ports
- 8K MAC address table and MAC address auto learning
- 8 PoE ports,single port output power 30W,Total power budget 110W
- 20Gbps non-blocking wire-speed forwarding
- Web platform remote management,mobile APP management
- 4M large cache
- Support QVLAN,DHCP Snooping,anti-loop,PoE timing,watchdog,etc.
Interfaces :
(9)1GE RJ45 ports
(1)1GE SFP ports
PoE interface : (8) PoE(Pins 1, 2+; 3, 6-)
LED Indicator :
Power
Link/Act
PoE MAX
Switching capacity : 20Gbps
Forwarding rate : 14.9Mpps
Power method : 100-240V AC，50 / 60Hz
Power consumption : 120W
Total available PoE : 110W
Max. PoE wattage per port by PSE : 30W
Lightning protection :
Port: 6 KV
Power：6 KV
Button : Factory reset
Operating temperature : 0°C - 45℃
Storage temperature : -40°C - 70°C
Operating humidity : 10% - 90%,non-condensing
Storage humidity : 5% - 90%,non-condensing
Dimensions : 177.5mm*104mm*26mm
Mounting :
Desktop mounting: support
Wall mounting: support
Enclosure material : Metal
PoE Management :
Support dynamic display of PoE consumption power and PoE remaining power
Support PoE ports on and off
Security features :
Support whitelist binding of MAC addresses, ports and VLAN
Support port isolation
VLAN :
Support VLAN transparent transmission
Support IEEE 802.1q VLAN
DHCP Server : Support DHCP Client
STP : Support loop guard on each port
Port mirroring : Support N: 1 port mirroring
QoS :
Support storm control on ports
Support ingress and egress rate limits on ports
Support port flow control
Cloud Management :
Support configuration delivery from ProFi Cloud management platform
Support ProFi App management
Support log reporting and fault detection
Support remote maintenance: reboot, backup, upgrade
Loading and upgrade :
Support HTTP upgrade
Support Configuration import and export
Management and maintenance :
Support web management and maintenance
Support Ping and Tracert tests
Support VCT
