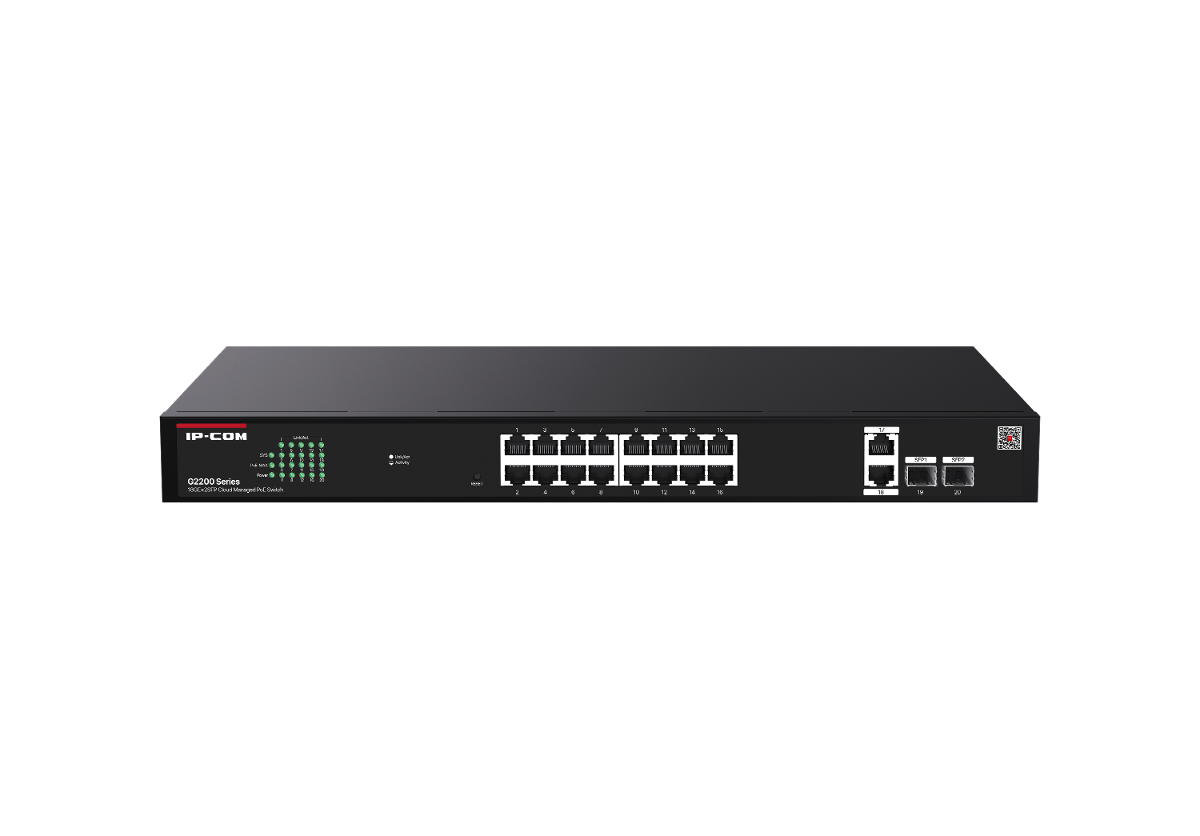

IP-COM G2220P-16-250W 18GE+2SFP Cloud Managed Switch With 16-Port PoE, power budget 230W
เพิ่มเมื่อ: 2025-06-02 15:18:19.0
แก้ไขล่าสุด: 2025-06-02 15:29:03.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) IP-COM G2220P-16-250W 18GE+2SFP Cloud Managed Switch With 16-Port PoE, power budget 230W
IP-COM G2220P-16-250W
SWITCH (สวิตซ์) IP-COM G2220P-16-250W 18GE+2SFP Cloud Managed Switch With 16-Port PoE, power budget 230W
- Comply with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at, IEEE802.3x,IEEE802.3z,IEEE802.1p,IEEE802.1q standards
- 18 10/100/1000 Base-T Ethernet ports, 2 1000 Base-X SFP optical ports
- 8 K MAC address table and MAC address auto learning
- 16 PoE ports, single port output power 30W, Total power budget 230W
- 40Gbps non-blocking wire-speed forwarding
- Web platform remote management, mobile APP management
- 4M large cache
- Support QVLAN, DHCP Snooping, anti-loop, PoE timing, watchdog, etc.
Interfaces :
(18)1GE RJ45 ports
(2)1GE SFP ports
PoE interface : (16) PoE (Pins 1, 2+; 3, 6-)
LED Indicator :
Power
Link/Act
PoE MAX
Switching capacity : 40Gbps
Forwarding rate : 29.8Mpps
Power method : 100-240V AC，50 / 60Hz
Power consumption : 250W
Total available PoE : 230W
Total available PoE : 30W
Lightning protection :
Port: 6 KV
Power：6 KV
Button : Funtion mode Button
Operating temperature : 0°C - 45℃
Storage temperature : -40°C - 70°C
Operating humidity : 10% - 90%,non-condensing
Storage humidity : 5% - 90%,non-condensing
Dimensions : 440mm*178mm*44mm
Mounting :
Rack mounting : support
Desktop mounting: support
Wall mounting: support
Enclosure material : Metal
PoE Management Support dynamic display of PoE consumption power and PoE remaining power
Support PoE ports on and off
Security features Support whitelist binding of MAC addresses, ports and VLAN
Support port isolation
VLAN Support VLAN transparent transmission
Support IEEE 802.1q VLAN
DHCP Server Support DHCP Client
STP Support loop guard on each port
Port mirroring Support N: 1 port mirroring
QoS Support storm control on ports
Support ingress and egress rate limits on ports
Support port flow control
