| WiFi Access Point Outdoor

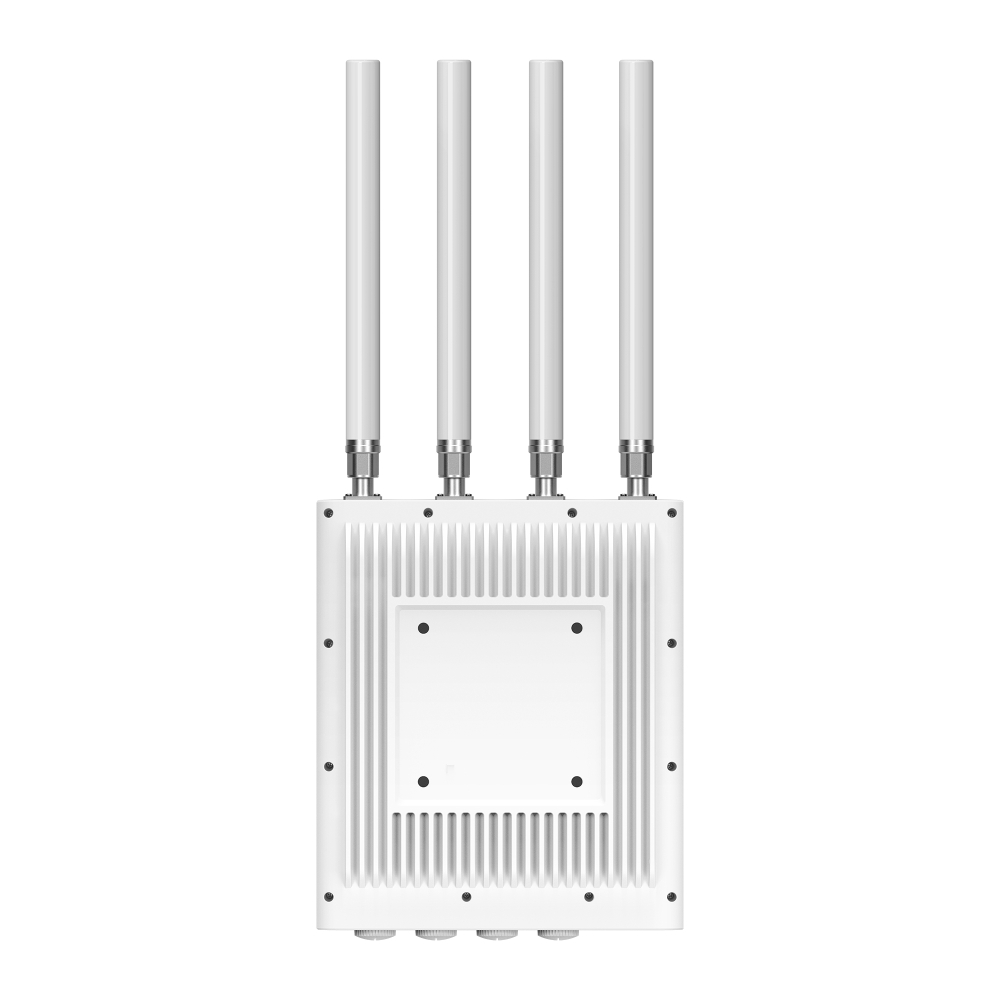

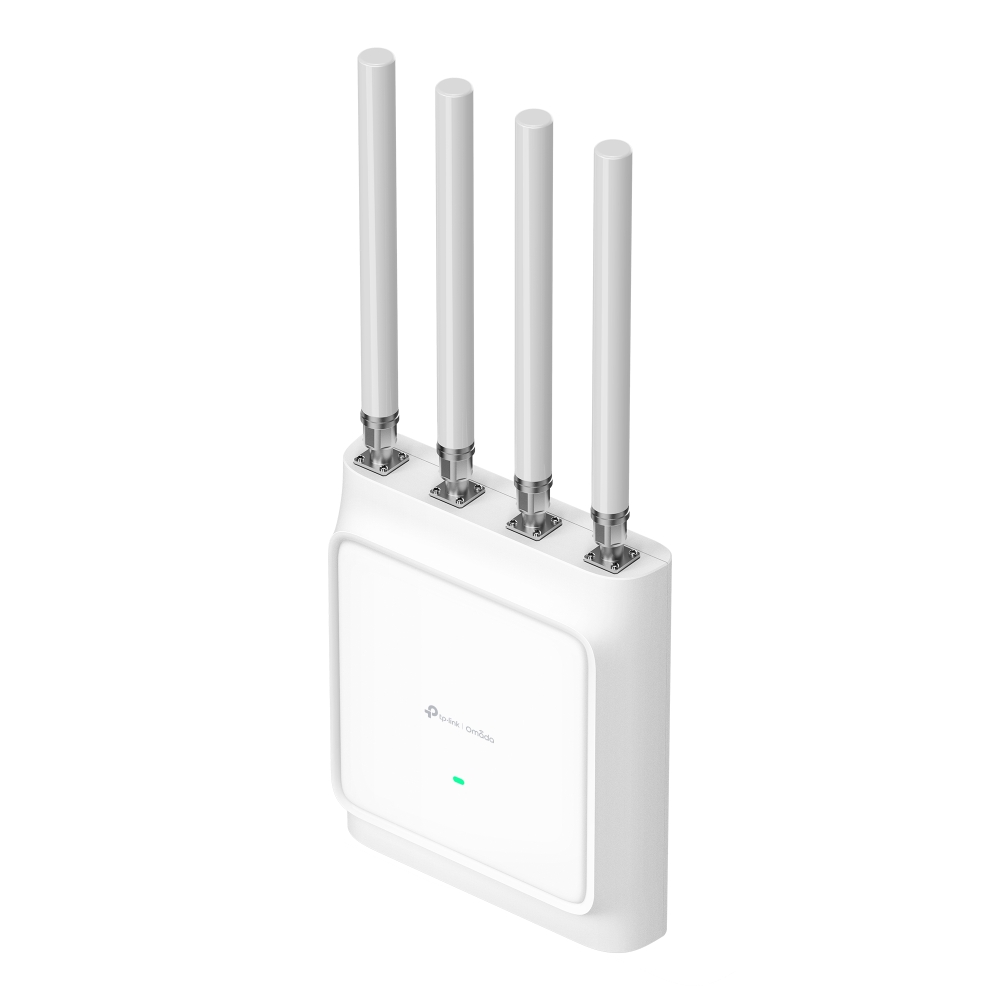

| TL-LINK EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point
TL-LINK EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point
เพิ่มเมื่อ: 2025-06-16 18:06:43.0
แก้ไขล่าสุด: 2025-06-16 18:07:15.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยซ์) TL-LINK EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point
TL-LINK EAP668-Outdoor HD
Access Point (แอคเซสพอยซ์) TL-LINK EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point
Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
High-Density Connectivity: Supports up to 1,024 devices.*
Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In port, and 1× Gigabit PoE-Out port.
PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.

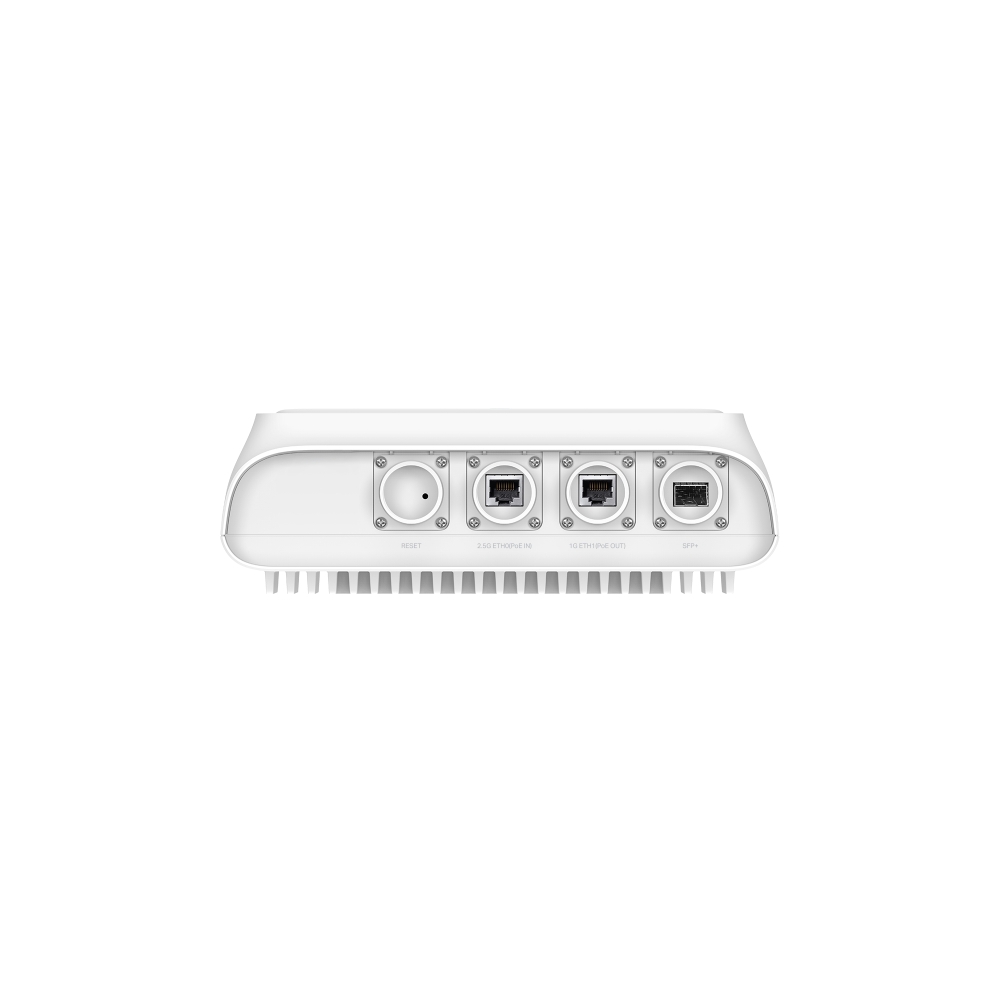

Interface : 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+
Button : Reset
Power Supply : 802.3at/bt PoE
Max. Power Consumption :
802.3bt:
• EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)
• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);
802.3at:
• EU: 20.2W (PSE disabled)
• US: 25.4W (PSE disabled)
Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Dimensions ( W x D x H ) : 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)
Antenna :
4× External Dual-Band Omni Antennas
• 2.4 GHz: 6.0 dBi
• 5 GHz: 6.0 dBi
Bluetooth : Yes
Weatherproof Enclosure : IP68
Concurrent Clients : 1,000+**
Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax
Frequency : 5 GHz, and 2.4 GHz
Signal Rate :
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions :
• 1024-QAM
• Mesh
• Seamless Roaming(802.11k/v/r)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment (Adjust transmit Power on dBm)
• Transmit Power Control
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• MU-MIMO (4 × 4 MU-MIMO DL/UL)
• UL/DL OFDMA
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security :
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power :
• CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)
Package Content :
• EAP668-Outdoor HD
• 4× External Dual-Band Omni Antennas
• Installation Guide
• Mounting Kit
• Waterproof Kit
Environment :
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
